What Are We Really Looking for During a Gearbox Borescope Inspection?

A gearbox borescope inspection is often described as a way to look for cracks,    wear, pitting or other internal damage without dismantling the gearbox.

That description is correct, but incomplete.

In practice, one of the most difficult parts of an inspection is not seeing    an unusual feature. It is deciding what that feature actually means.

A line on a bearing surface may look suspicious. A dark area on a gear tooth    may resemble surface damage. A change in texture may indicate wear,    contamination, manufacturing marks or simply a normal feature of the component.

This is why professional remote visual inspection is not just about finding defects.

It is about collecting reliable visual evidence, understanding the context    of what is being observed, documenting the finding and determining whether    further verification is required.

1. A Videoscope Shows Evidence — Not Automatically a Diagnosis

Modern industrial videoscopes allow inspectors to access internal gearbox    components that would otherwise require significant disassembly.

Depending on gearbox design and available access points, the inspection may include:

• Gear teeth and tooth flanks

• Bearings and bearing surfaces

• Shafts

• Retaining components

• Internal housings

• Lubrication areas

• Oil distribution channels

• Fasteners and locking components

• Internal surfaces around gears and bearings

The videoscope provides visual information about these components.

However, seeing an unusual indication does not automatically identify its cause.

For example, a visible line may be associated with a crack, but it may also    result from:

• A normal component design feature

• A manufacturing or machining mark

• A joint or structural boundary

• Surface treatment

• Previous maintenance

• Oil or contamination

• Lighting and reflection

The first responsibility of visual inspection is therefore to record what    can actually be seen before deciding what it represents.

2. What Are Inspectors Looking for on Gear Teeth?

Gear teeth are among the most important areas during gearbox inspection because    their surface condition can provide useful information about mechanical contact    and wear.

Typical visual indications may include:

• Pitting

• Surface fatigue

• Spalling

• Scoring

• Scratches

• Wear patterns

• Chipping

• Edge damage

• Discoloration

• Deposits

• Foreign material

The position of the indication is often as important as its appearance.

An inspector may consider whether the indication occurs:

• Near the tooth root

• Around the pitch line

• Toward the tooth tip

• At one edge of the tooth

• Across the complete tooth width

• On only one gear tooth

• Repeatedly on several teeth

A close and well-focused image can document the surface condition, but    interpretation still requires mechanical context.

The same visual pattern can have different significance depending on gearbox    design, loading, operating history and previous inspection results.

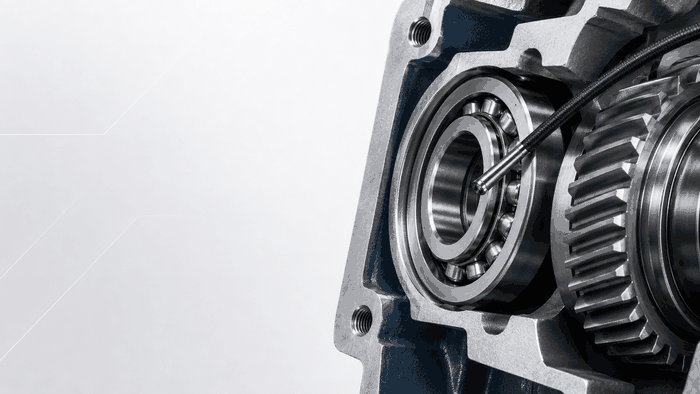

3. What Are Inspectors Looking for on Bearings?

Bearings can be particularly challenging during borescope inspection.

Depending on access and bearing design, the videoscope may allow inspection of:

• Visible raceway surfaces

• Inner or outer ring areas

• Rolling elements

• Cage components

• Edges and shoulders

• Lubricated surfaces around the bearing

Typical observations may include:

• Surface marks

• Pitting

• Spalling

• Scratches

• Corrosion

• Discoloration

• Deposits

• Unusual wear patterns

• Linear indications

• Mechanical damage

But bearing inspection also demonstrates why visual interpretation must be    handled carefully.

A visible line, edge or separation can initially appear abnormal without    necessarily representing damage.

Some bearing designs contain structural features that may look unusual when    viewed through a videoscope from a short distance and under concentrated illumination.

Without the correct bearing drawing, component information or previous    reference images, an inspector may not always be able to classify the    indication immediately.

The correct conclusion in such a case is not necessarily:

“This is a crack.”

It may instead be:

“A linear indication was observed. The available visual information is        insufficient to confirm whether it represents damage. Further verification        is recommended.”

That distinction is important.

4. An Unusual Indication Is Not Automatically a Defect

One of the most important principles in industrial visual inspection is:

An unusual indication is not automatically a defect.

But the opposite is equally important:

An unusual indication should not simply be assumed to be normal without verification.

This creates an important distinction between three different levels of inspection.

Detection

Something unusual is visible.

Classification

The inspector evaluates what type of indication it may represent.

Diagnosis

The available information is used to determine whether the component is    damaged and whether maintenance action is necessary.

A videoscope can be extremely effective at the first stage and provide    important information for the second.

The final diagnosis, however, may require additional component and machine information.

5. Why Inspection Context Matters

A videoscope image rarely tells the complete story by itself.

Several questions may influence how a visual indication should be interpreted:

• Which gearbox component is being inspected?

• What is the exact location?

• What is the component design?

• Is the feature visible elsewhere on the same component?

• Was it visible during the previous inspection?

• Has it changed in size or appearance?

• What are the operating hours?

• Has the gearbox experienced abnormal loads?

• Are there vibration changes?

• Does oil analysis indicate abnormal wear?

• Are relevant OEM drawings or component data available?

Without this context, even a very clear image can sometimes remain ambiguous.

This leads to an important principle:

High image quality improves the quality of the evidence, but image        quality alone does not replace engineering judgement.

6. Detect → Document → Verify → Diagnose

A practical gearbox borescope inspection can be understood as a four-stage process.

Detect

Identify visual indications that differ from the expected surface condition.

This may include wear, cracking, pitting, deposits, discoloration,    deformation or other unusual features.

Document

Capture the finding properly.

Useful documentation may include:

• Clear still images

• Video

• Different viewing angles

• Wider orientation images

• Close-up images

• Component identification

• Inspection location

• Gear or bearing position

• Date and inspection reference

• Inspector comments

An isolated close-up image may show the indication clearly but provide very    little information about where it is located.

For this reason, both overview and detail images can be valuable.

Verify

Compare the indication with available information.

Verification may involve:

• Component drawings

• Bearing or gearbox documentation

• OEM information

• Previous inspection images

• Maintenance records

• Similar components

• Other inspection methods

If the indication cannot be classified reliably during the inspection,    recording it as an anomaly for further verification is often more appropriate    than making an unsupported conclusion.

Diagnose

Only after the available evidence has been evaluated should the finding    become part of a wider condition assessment.

The result may be:

• Normal component feature

• Monitor during future inspections

• Further inspection required

• Suspected damage

• Confirmed damage

• Maintenance action required

The videoscope therefore becomes part of the decision-making process rather    than the decision itself.

7. Why Documentation Is Part of the Inspection

A good inspection does not end when the probe is removed from the gearbox.

The recorded information may later need to be reviewed by:

• Maintenance engineers

• Reliability engineers

• Gearbox specialists

• Bearing specialists

• OEM technical teams

• NDT personnel

• Remote experts

This is particularly important when the person performing the borescope    inspection is not the same person making the final maintenance decision.

Good documentation allows another engineer to understand:

• What was observed

• Where it was found

• How clearly it was visible

• Whether it appeared from different angles

• Whether it has changed compared with previous inspections

This is one reason why videoscope performance should not be evaluated only    by whether the camera can physically reach the inspection area.

The ability to create useful and repeatable visual records is also important.

8. The Importance of Viewing an Indication from Different Angles

Metal surfaces inside gearboxes can produce strong reflections.

Oil films, polished surfaces and directional illumination may change the    apparent shape or contrast of a feature.

A dark line visible from one angle may become much less prominent when the    distal tip is moved.

A surface feature may also appear deeper or sharper depending on illumination direction.

When practical, the inspector should therefore avoid relying on a single image.

Useful techniques include:

• Changing the viewing angle

• Moving slightly closer or farther away

• Changing illumination where possible

• Recording a short video while moving around the indication

• Capturing both overview and close-up images

This can provide much more information than one static frame.

9. Visual Inspection and Condition Monitoring Should Support Each Other

Gearbox condition assessment often involves more than one source of information.

Remote visual inspection answers an important question:

What does the internal surface look like?

Other condition-monitoring methods answer different questions.

Vibration Analysis

Vibration data can help identify changes in dynamic machine behaviour and    may indicate developing gear or bearing problems.

Oil Analysis

Lubricant condition and wear particles can provide additional information    about internal wear and contamination.

Condition Monitoring Systems

Long-term monitoring can help identify trends and changes in machine    behaviour over time.

Maintenance and OEM Information

Drawings, component specifications and historical maintenance information    can help determine whether a visual feature is expected or abnormal.

The strongest condition assessment is therefore usually based on correlation    rather than one isolated indication.

Visual inspection, vibration analysis, oil analysis and operating history    can provide different parts of the same picture.

10. What Makes a Videoscope Useful for Gearbox Inspection?

For gearbox applications, videoscope selection should not focus on camera    resolution alone.

A practical system should support the complete inspection workflow.

Important considerations include:

• Suitable probe diameter for the available access

• Appropriate probe length

• Reliable articulation

• Sufficient illumination

• Suitable depth of field

• Good image quality

• Stable image and video recording

• Practical handling inside complex internal structures

• Ability to document findings

• Suitable probe durability for the inspection environment

Gearbox inspection can expose probes to oil, hard metallic surfaces,    sharp edges and complex internal geometry.

Probe handling and access therefore remain just as important as image performance.

A high-resolution image is useful only if the probe can safely reach and    correctly view the required component.

11. What a Borescope Cannot Tell You

Remote visual inspection is powerful, but its limitations must also be understood.

A borescope normally evaluates surfaces that are optically accessible.

It does not automatically determine:

• Internal material condition below the visible surface

• Exact crack depth

• Subsurface fatigue

• Remaining component life

• Root cause of every visual indication

• Whether every unusual feature requires replacement

These questions may require additional NDT methods, engineering analysis    or OEM evaluation.

Understanding these limitations does not reduce the value of borescope inspection.

It makes the inspection more reliable because conclusions remain aligned    with the evidence actually available.

12. A Better Inspection Question

Instead of asking only:

“Did we find a defect?”

A more useful gearbox inspection approach is to ask:

• What did we observe?

• Where exactly is it located?

• Is the indication repeatable from different angles?

• Has it changed since the previous inspection?

• Does the component design explain it?

• Does other condition-monitoring data support the observation?

• Is additional verification required?

• Is there enough evidence to make a maintenance decision?

This changes the purpose of the videoscope from simply “finding damage”    to providing reliable visual evidence for engineering decisions.

Conclusion

Gearbox borescope inspection is not simply a search for cracks, pitting or wear.

The real task is to distinguish between expected component features,    unusual indications and meaningful damage.

A professional inspection therefore requires more than good image quality.

Detection. Documentation. Verification. Diagnosis.

A better videoscope does not replace engineering judgement.

 It provides better visual evidence for engineers to make that judgement.

When visual inspection is combined with component information, historical    records, vibration analysis, oil analysis and other condition-monitoring    data, the result is a much more reliable understanding of gearbox condition.
