Portable 360° rotating pipe inspection camera system for industrial pipelines, drainage systems, and underground inspection applications

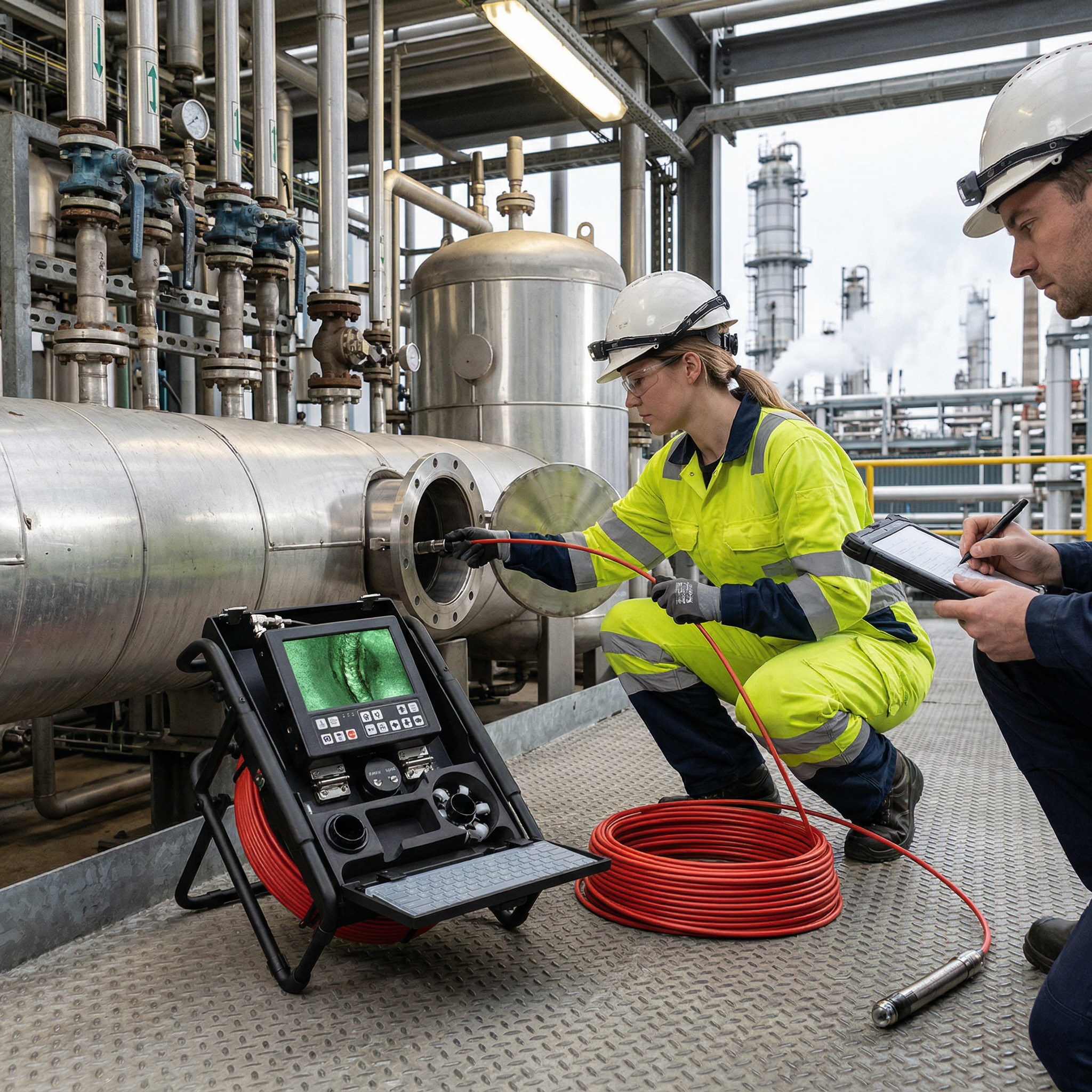

The PiPeSnake PS-330 is a compact industrial pipe inspection camera system designed for drainage, sewer, underground pipeline, and industrial inspection applications.
The system features a 360° rotating stainless-steel camera head with high-brightness LED illumination, allowing operators to inspect pipe systems with diameters ranging from 40 mm to 200 mm.
Its integrated 8-inch HD display, digital recording capability, and portable push-rod design make it suitable for field inspection work in harsh industrial environments.
360° rotating camera head
33 mm waterproof stainless-steel camera
Suitable for Ø40–200 mm pipelines
20–50 m push rod cable options
8” HD monitor with digital recording
USB image and video storage
IP68 protection level
Portable integrated inspection platform
Sewer inspection
Drain pipe inspection
Industrial pipeline maintenance
Underground utility inspection
HVAC pipe inspection
Municipal drainage inspection
Construction pipeline inspection
The system is suitable for pipelines from 40 mm to 200 mm diameter.
Yes, the camera head is IP68 protected for industrial inspection environments.
Yes, the system supports digital recording and USB storage.
| Camera Diameter | 33 mm |
| Camera Rotation | 360° |
| Field of View | 90° |
| Image Sensor | Color CMOS |
| Resolution | 2 Megapixels |
| Illumination | 2 High-Brightness LED Lights |
| Monitor Size | 8 Inch |
| Storage | USB Storage |
| Cable Length | 20–50 m |
| Protection | IP68 |
| Working Temperature | 5°C – 50°C |
